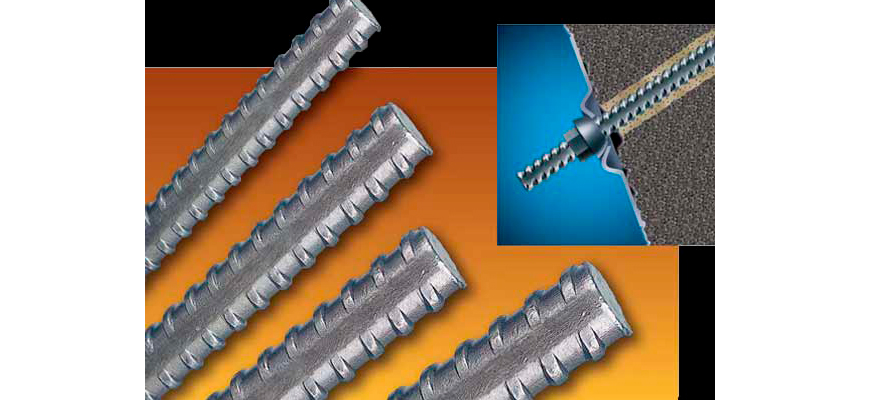

Product: Hot laminated rods with wide protruding helicoidal threading Technical Guide: ASTM A615, Grade 75 & Grade 60 standards Details: Can be made up to 12 meters in length and up to 22mm in diameter. Use: Standard support used for civil and mining operations. Benefits: Used primarily for more precise control over superficial and underground rock body instabilities.
Product: Nut made of nodular cast iron, a material in which graphite is present in a spheroidal form, giving it good ductility characteristics. Technical Guide: ASTM A536 standards Details: Individual anchor nuts. Use: Part of the helical anchoring system. Allows the correct positioning of flat anchor plates on solid rock. Benefits: Made for the anchoring plates to permanently stay on the rock body thanks to it's spherical shape, without the need of additional materials.

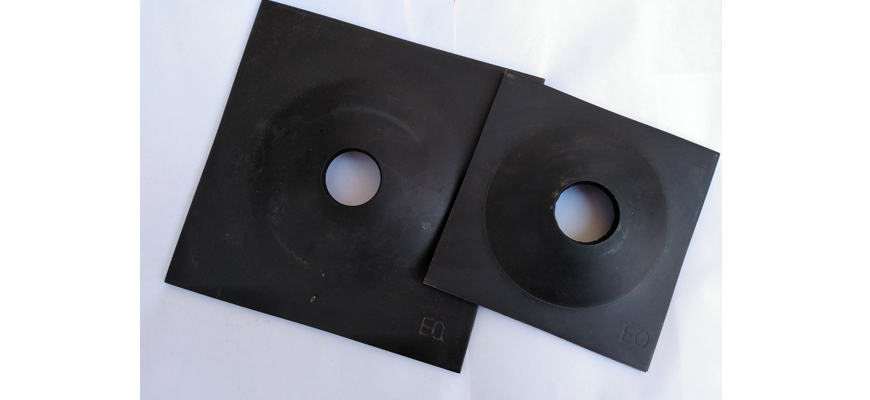

Product: Formed from a perforated structural steel plate, through which the Helical Rod or the Split Set Rod moves. The plate, together with the nut, constitute the fastening system between the helical rod and the part of the surface to be secured. Technical Guide: It is made from structural grade hot rolled steel sheets that meet ASTM A36 standards. Details: Individual plates. Use: Acts as a base for the domed nut in the helical anchoring system. Benefits: It assists the generation of the compression envelope, once the anchor acts on the rocky mass. It allows the recording of rock mass stress events, and the positioning of additional support elements.

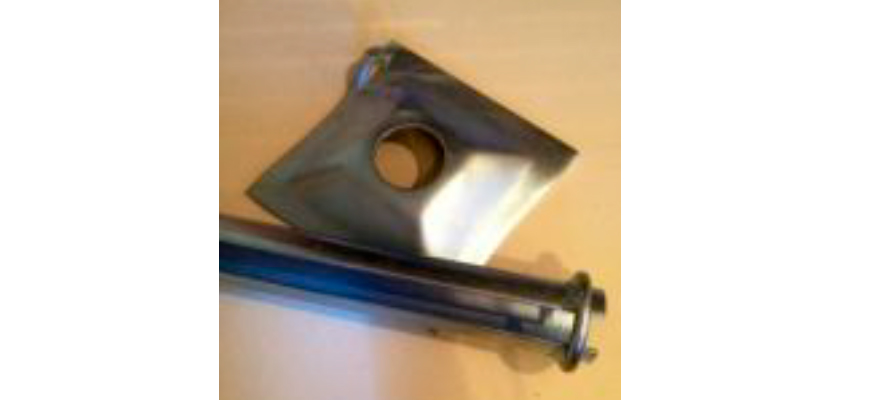

Product: Used for ceiling and roof support. Technical Guide: ASTM A607 grade 60 standards. Details: 39 mm, 41 mm and 46 mm diameters; varying lengths. Benefits: Added as a temporary reinforcement system in tunnels or stabilizing surface work.

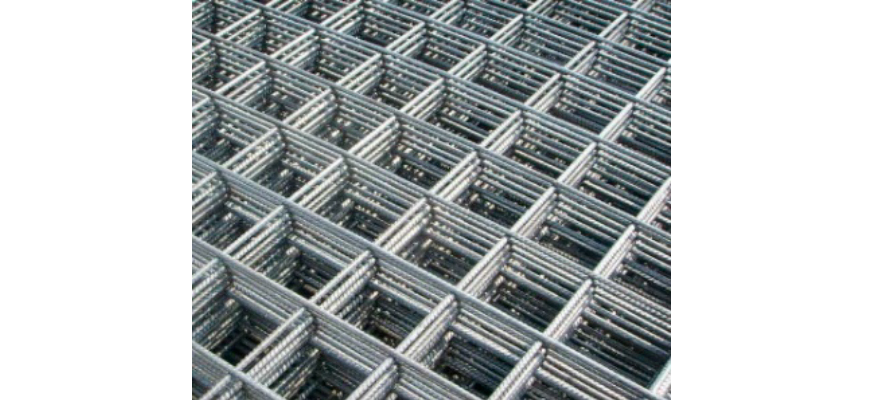

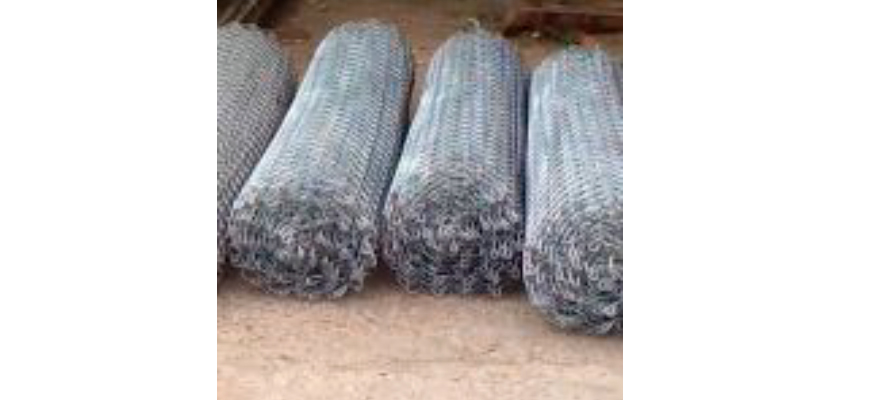

Product: Woven mesh of galvanized metal, available in a variety of sizes. Can be made of 4, 6, 8 or 10 caliber wire, and with 50mm to 100mm openings. Details: Varying panel sizes available. Use & Benefits: Acts as support on tunnel structures.
Product: Woven mesh of galvanized metal, available in a variety of sizes. Can be made of 4, 6, 8 or 10 caliber wire, and with 50mm to 100mm openings. Details: Varying panel sizes available. Use & Benefits: Acts as support on tunnel structures.

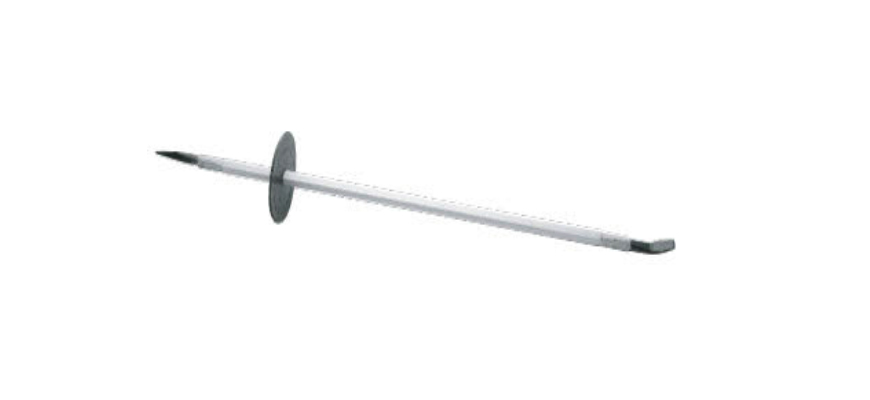

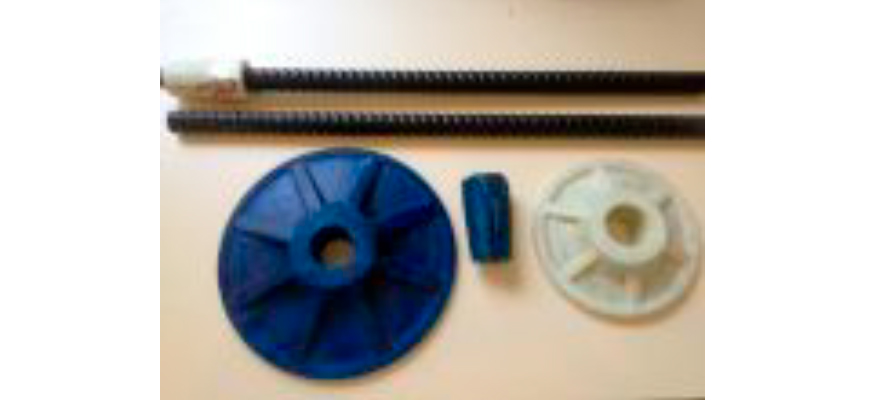

Product: Used in underground excavation projects, ventilation shafts and ore transfer. They are also used in construction as a structural element in concrete. They are manufactured with fiberglass with resin threads. Details: Rods of 22 , 25 y 27 mm diameters, round anchor plates of 14 cm diameter, nuts are of size according to the rod diameter. Benefits: Low weight, high tensile strength, corrosion resistance, and flexible.
Product: Used as a means of anchoring rods in rock and concrete for support. They contain high quality polyester resin and a solid state catalyst in balanced quantities and separated by a thin plastic film which constitutes a barrier that prevents their premature interaction. Velocities: Instant – Quick – Normal Diameters: 23 - 25 – 28 - 30 – 32 – 35 and 38 mm Lengths: 300 to 500 mm

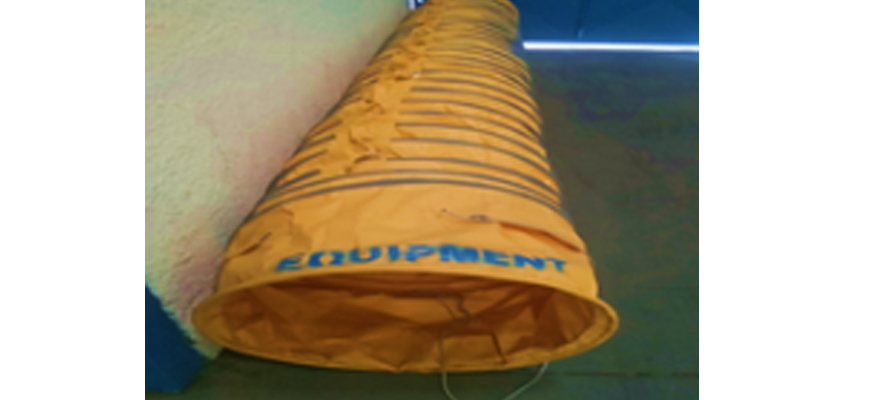

Product: General ventilation and extraction of welding processes vapors and fumes, especially in confined spaces. Ventilation and provisioning of fresh air in hard-to-reach places. Materials: We use PVC coated fabrics on both sides, highly resistant to acids, with an anti-flame and anti-static formula, which makes it self-extinguishing. Mounting Method: Bronze rings placed in the upper lining of the duct, regularly spaced for their correct mounting on the ceiling of shafts and other surfaces. Joining system between sections with clips, skirt or metal rings. Temperature Range: -30°c / 70°c (*) Material thickness: 0.4 mm and 2 mm Material Weight: 450 gr/m2 and 2300 gr/m2 Dimensions: As required
The aluminum wedges are offered in all sizes from 1 to 6m length with hand protection.

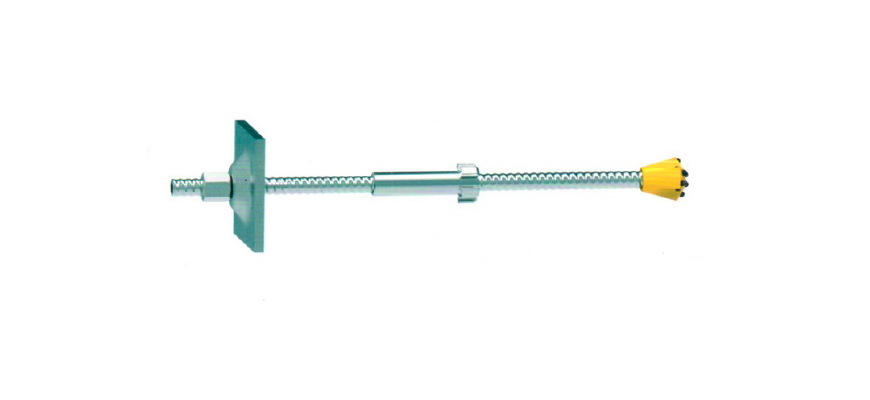

This type of rods consists of a bar threaded in the left direction throughout its length with a central perforation that serves for the passage of air or water to sweep the perforation.

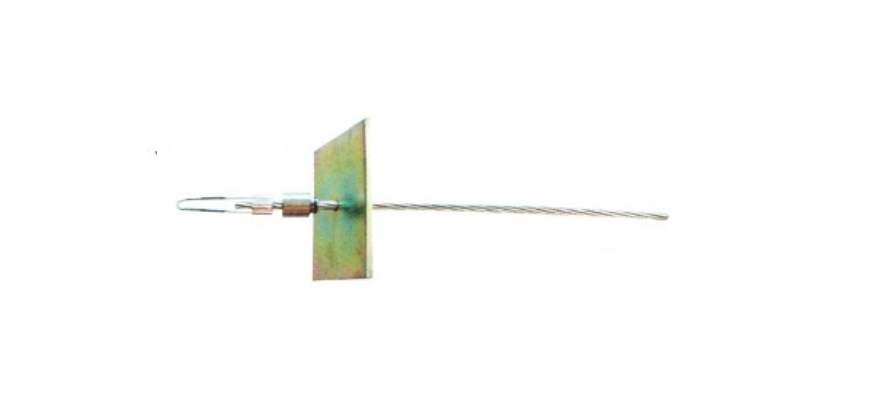

They are used to reinforce large underground excavations and to stabilize slopes.
Used for stabilization or reinforcement.

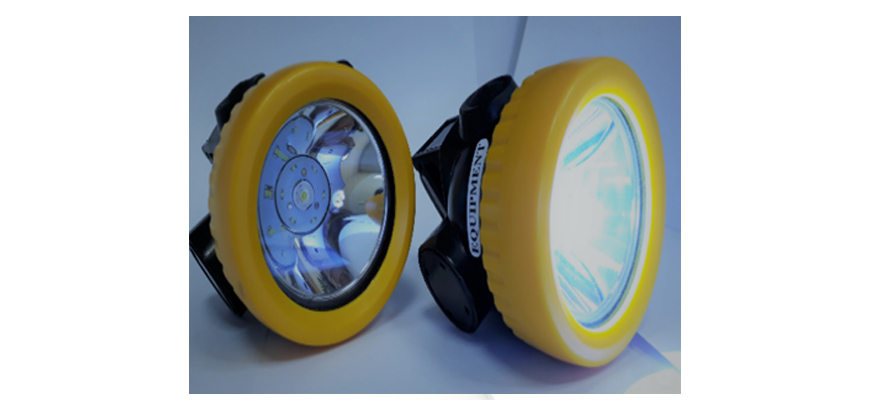

*Intrinsic safety option for high explosion risk areas. *With cord and cordless options. *Lamps with underground locating devices.

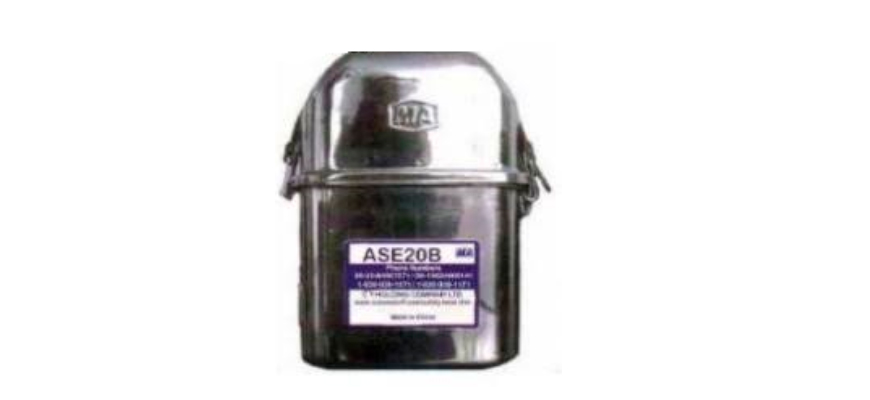

*Self-rescuers that generate oxygen by an internal chemical process. *Unlike filter self-rescuers, it protects against any toxic gas, not just CO. *Easy transport *Does not cause burns *Dust and water tight: IP 66 *Stainless Steal body *Antiseptic and long-lasting.

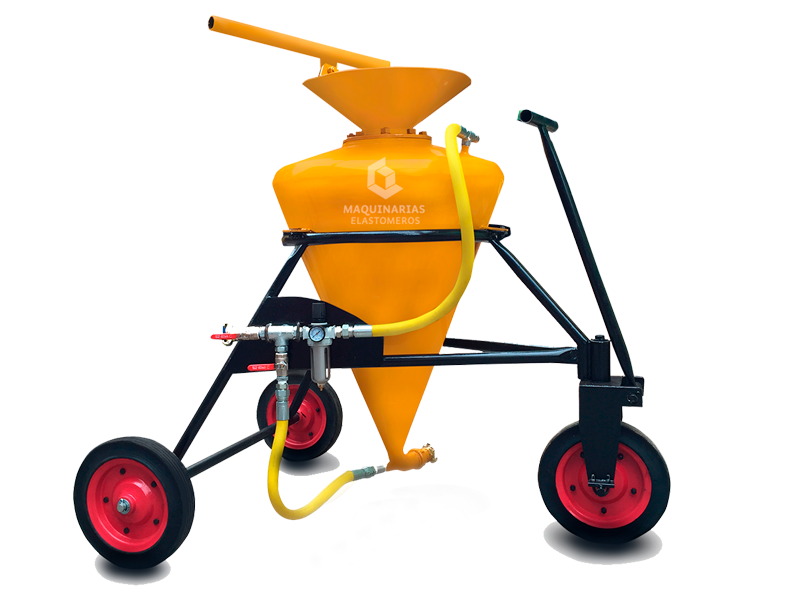

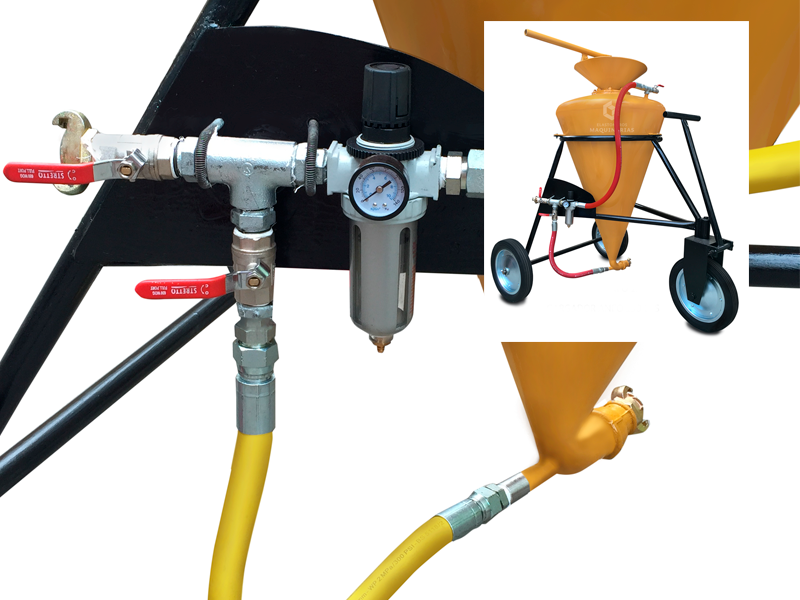

Type: Jet-Anol Fabrication: 3mm Stainless Steel Capacity: 150 lts Use: Front loading, with recessed and reduction coupling Operation: Manual Feed: Pressurized air between 90-100psi Connections: Air inlet and outlet Anfo: Chicago 1” Transport: Portable steel frame with 3x10” wheels, allowing for easy transport Weight: 190 kg aprox.
Type: Jet-Anol Fabrication: 3mm Stainless Steel Capacity: 150 lts Uso: Front loading, with recessed and reduction coupling Operation: Manual Feed: Pressurized air between 90-100psi Connections: Air inlet and outlet Anfo: Chicago 1” Transport: Portable steel frame with 3x10” wheels, allowing for easy transport Weight: 190 kg aprox.
Type: Jet-Anol Fabrication: 3mm Stainless Steel Capacity: 75 lts Uso: Front loading, with recessed and reduction coupling Operation: Manual Feed: Pressurized air between 90-100psi Connections: Air inlet and outlet Anfo: Chicago 1” Transport: Portable steel frame with 3x8” wheels, allowing for easy transport Weight: 150 kg aprox.
Graco 4hp/1500rpm pneumatic pump for the stainless steel mixer. Capacity: 50 lt/min Working Pressure: Maximum 500 PSI Air Consumption: 100CFM a 100PSI max. 500PSI Use: Front load, indents Injection Hose: 1” (25 mm) Air Hose: ¾” Horizontal Reach: 50 m Vertical Reach: 20 m Weight: 100 kg aprox.

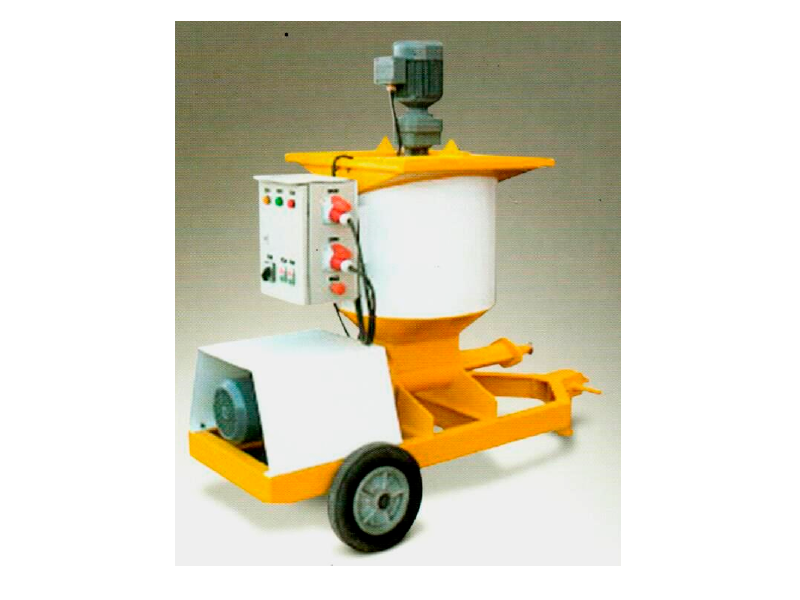

Pump Type: Progressive screw drive Pump Spreed: 350 rpm/min Granuels: 3 mm Max. Delivery Volume: Up to 200 lt/h Max. Pump Pressure: Up to 40 Bar Max. Pump Distance: Up to 50 m Hose Diameter: 25 mm internal Mixing Capacity: 4x45 kg cement bags Weight: 250 kg Electrical Supply: Three-phase

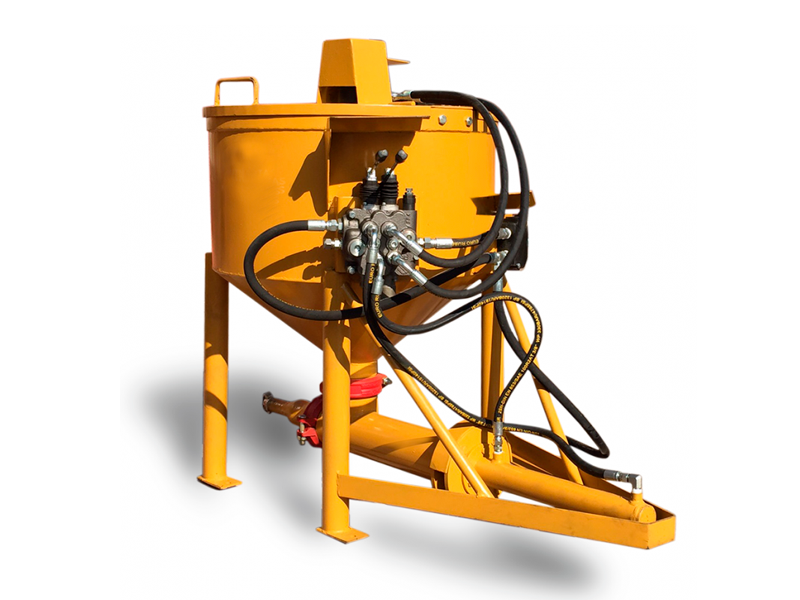

Tank Capacity: 4x45 kg cement bags (150 lts) Engine: USA manufacrured EATON engine Rpm: 550 máx @ 24 Bar Torque: 155 Nm Delivery Axel: Vertical 1" diameter with inclined blades and bronze bushes Control: Double hydrolic with pressure regulator Piping: High pressure crimped (330 Bar) Steel Tank: 4 mm thickness
